Microphone modules are compact units that integrate a microphone element with essential circuitry, such as decoupling capacitors, connectors or contact pads, into a single package. They simplify the integration of audio capture into devices by providing a ready-to-use solution. Commonly used in smartphones, voice assistants, and IoT devices, these modules offer ease of integration and consistent performance, accelerating product development and enhancing audio functionality.
| Image | Name | Description | Dimensions (LxW) [mm] | Microphone PN | Microphone Port | AOP [dB SPL 1%] | SNR [dB] | LFRO [Hz] |
|---|---|---|---|---|---|---|---|---|

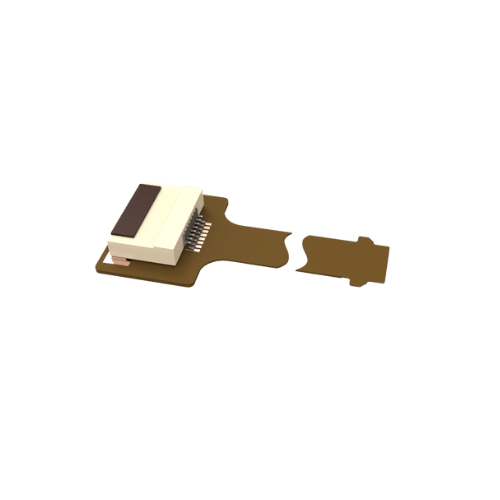

| KFE-15 | Seltech Flex circuit extension for Syntiant Flex circuits for testing | 150x11.5 | - | - | - | - | - |
| ABY-SPH0655 | FPC with SPH0655LM4H-1 | 25x4.5 | SPH0655LM4H-1 | Bottom port | 130.5 | 70 | 25 |

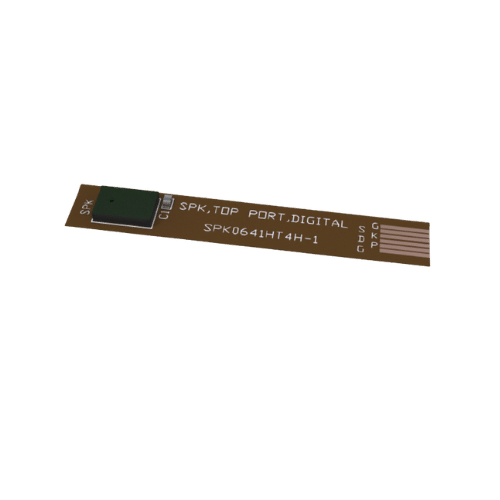

| KAS-700-0145 | FPC with SPK0641HT4H-1 | 25x4.6 | SPK0641HT4H-1 | Top port | 120 | 64.5 | 35 |

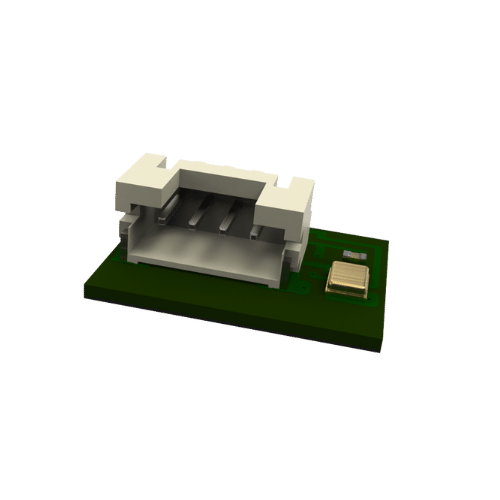

| MIC211002 | Adhesive PCB with SPH0690LM4H-1 and JST S4B-PH-SM4B-TB connector | 18.35x14.3 | SPH0690LM4H-1 | Bottom port | 130 | 68.5 | 30 |
