AISonic™ SmartMics are low-power, intelligent microphones from Syntiant that are adaptable across various form factors in mobile devices, true wireless stereo (TWS) earbuds, and IoT applications. They enhance audio processing and understanding while maintaining a compact size. By handling data processing at the edge, these SmartMics offer wake-on-voice capabilities with reduced power consumption and increased privacy, all without compromising performance.
| Image | Name | Diameter / length [mm] | Width [mm] | Thickness [mm] | Port location | Output format | Sensitivity @ 1kHz [dBV re. 1V/Pa] or dBFs | Sensitivity Tolerance [± dB] | SNR [dB] | AOP [dB] | Nominal Voltage [V] | Memory [MB] | Digital Audio I/O | Digital Comm I/O | Product status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

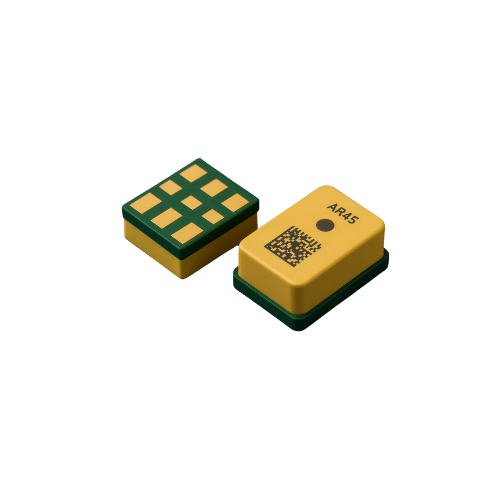

| IA610 | 3.5 | 2.65 | 0.98 | Bottom | Digital | -37 | 1 | 65.5 | 132.5 | 1.8 | 0.248 | 1x PDM in, 2x PDM out, 1x I2S/TDM (4ch in/out) | 1x I²C, 1x SPI, 1x UART, 1x GPIO w/interrupt | Preferred |
| IA611 | 4 | 3 | 1.3 | Top | Digital | -37 | 1 | 65.5 | 132.5 | 1.8 | 0.248 | 1x PDM in, 2x PDM out, 1x I2S/TDM (4ch in/out) | 1x I²C, 1x SPI, 1x UART, 1x GPIO w/interrupt | EOL |
