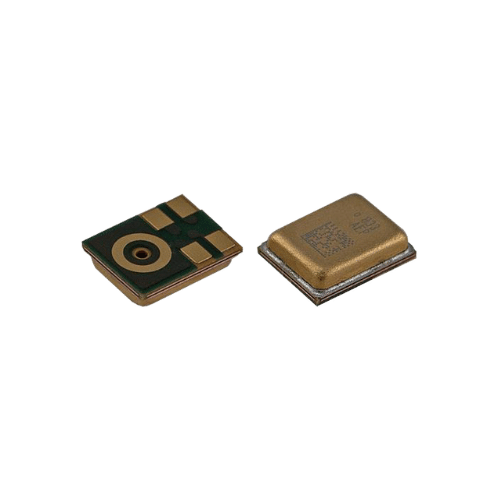

SPH18R1LM4H-1	Syntiant	3.5	2.65	1	Bottom	Digital PDM	-37	1	68	128.5	NA	Preferred
SPH88R1LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-37	1	68	128	NA	Active
SPV08A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-42	1	64.5	134	400	Not Recommended For New Designs
SPM0192LR5H-1	Syntiant	4.72	3.76	1.15	Bottom	Analog Differential	-34.7	1	69.5	130	330	Active

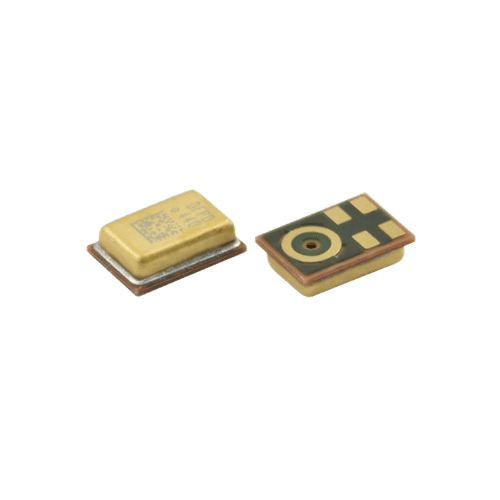

SPV01R9LM4H-1	Syntiant	2.75	1.85	0.8	Bottom	Digital PDM	-37	1	64.6	132	NA	Active
SPK18R1LM4H-1	Syntiant	4	3	1.2	Bottom	Digital PDM	-36	1	70.5	128	NA	Active

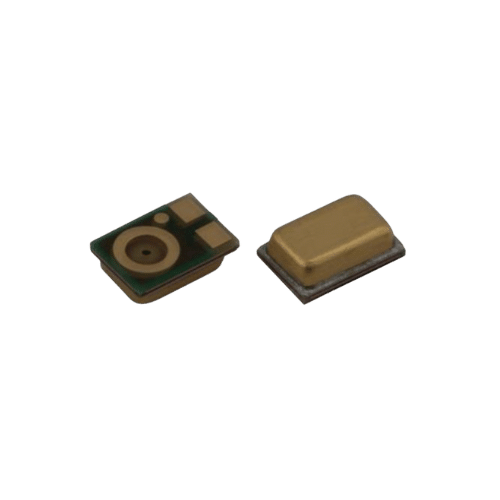

SPV01C8LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	65	133	440	Active
SPH8878LR5H-1	Syntiant	3.5	2.65	1.26	Bottom	Analog Differential	-38	1	64.5	131.5	380	Active
SPK0833LM4H-B	Syntiant	4	3	1	Bottom	Digital PDM	-26	3	63	122	NA	Not Recommended For New Designs
SPC18P8LM4H-1	Syntiant	3.5	2	1	Bottom	Digital PDM	-26	1	65	122	NA	Active

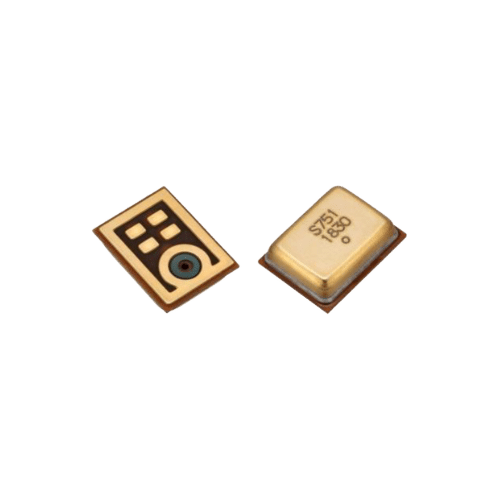

SPK1638LM4H-1	Syntiant	4	3	1	Bottom	Digital PDM	-26	1	64	121	NA	Active
SPK01A0LR5H-1	Syntiant	4	3	1.2	Bottom	Analog Single Ended	-38	1	71.8	130	300	Preferred
SPV61A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-40	1	66	133	300	Active

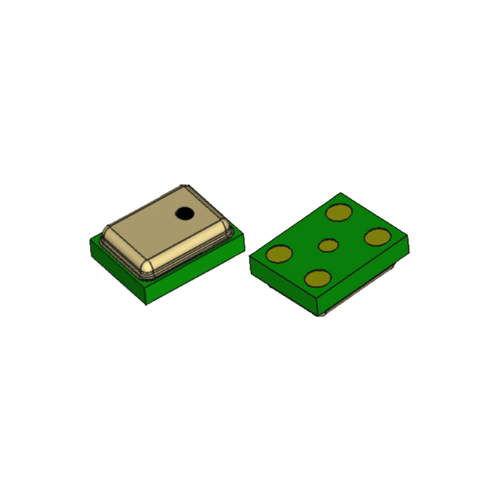

SPU01C4HR5H-1	Syntiant	3.76	2.95	1.1	Top	Analog Single Ended	-42	1	62.5	128	300	Active
SPU0410HR5H-1	Syntiant	3.76	2.95	1.1	Top	Analog Single Ended	-42	1	59	125	400	Active
SPG08P4HM4H-1	Syntiant	4	2	1.1	Top	Digital PDM	-26	1	64	120	NA	Active

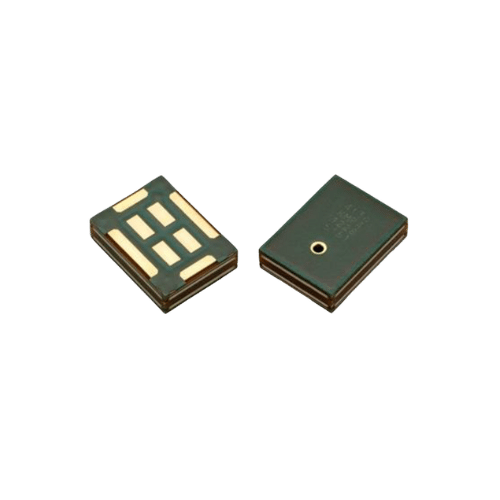

SPK0838HT4H-B	Syntiant	4	3	1	Top	Digital PDM	-26	3	64	121	NA	Not Recommended For New Designs
SPK1638LM4HB	Syntiant	4	3	1	Bottom	Digital PDM	-26	3	64.5	122	NA	Not Recommended For New Designs
SPH11C3LR5H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	132	120	Active
SPH21C3LR5H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	134	120	Active
SPG01R8HT4H-1	Syntiant	4	2	1.1	Top	Digital PDM	-26	1	67.5	120	NA	Active
SPH8690LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	68	121	NA	Active
SPK11R1LM4H-1	Syntiant	4	3	1.2	Bottom	Digital PDM	-26	1	71.2	121	NA	Active
SPS11R1LM4H	Syntiant	3.25	2.25	0.8	Bottom	Digital PDM	-37	1	64.8	132	NA	Active
SPVA1A0LR5H-1	Syntiant	2.75	1.85	1.15	Bottom	Analog Single Ended	-40	1	68	132	400	Active

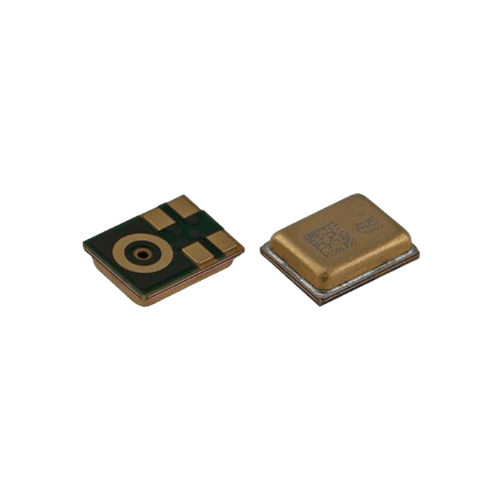

SPH01R9LM4H-1	Syntiant	3.4	2.65	0.98	Bottom	Digital PDM	-37	1	65.5	132.5	NA	Active
SPH51R3LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	66	121	NA	Active
MM20-33769-000	Knowles	5.204	2.5	1.3	Side firering	Analog Unity Gain	-36	3	67	120	5100	Active
MM20-34978-000	Knowles	4.24	2.5	1.30	Side firering	Analog Unity Gain	-35	3	68	119	5100	Active

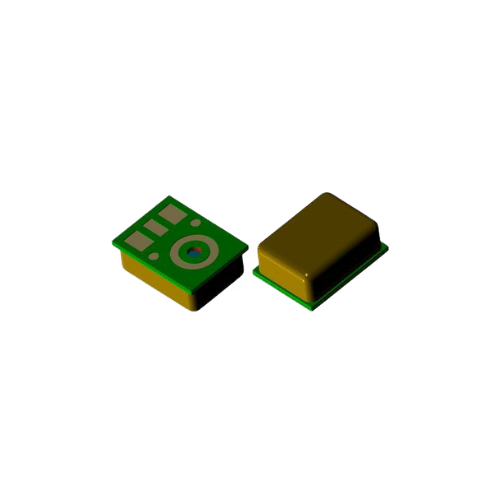

MM25-33663-000	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-58	3	69	120.5	3150	Active
SPH6655LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-26	1	68	121	NA	Preferred
SPH0141LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	62	120	NA	Preferred
MM20-33639-B116	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-36	3	69	122	5100	Preferred
MM20-33366-000	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-35	3	70.5	121	5100	Preferred
SPH18C3LM4H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	132	120	Not Recommended For New Designs
SPH9855LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-37	1	66	132.5	NA	Preferred
SPH1878LR5H-1	Syntiant	3.50	2.65	1.26	Bottom	Analog Differential	-38	1	66.5	134	380	Preferred
SPV1142LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	62.5	124	300	Active
SPW0690LM4H-1	Syntiant	3.1	2.5	0.85	Bottom	Digital PDM	-41	1	66.5	135	NA	Preferred
MQM-32325-B66	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-38.5	3	67.5	123	4450	Not Recommended For New Designs
MQM-32325-000	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-38.5	3	67.5	123	4450	Not Recommended For New Designs
MM15-33369-B116	Knowles	3.35	2.5	1.3	Bottom	Analog Unity Gain	-36	3	67	122	5100	Not Recommended For New Designs
MM20-33366-B116	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-35	3	70.5	121	5100	Preferred
MM20-33639-000	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-36	3	69	122	5100	Preferred
SPW0878LR5H-1	Syntiant	3.1	2.5	0.96	Bottom	Analog Differential	-38	1	65	134	380	EOL
SPV21A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-42	1	64.5	134	400	Preferred
SPV0142LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	62.5	124	400	Preferred
SPH0641LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	64	120	NA	Not Recommended For New Designs
SPH0641LU4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	64.3	120	NA	Preferred
SPH0644HM4H-1	Syntiant	3.5	2.65	0.85	Top	Digital PDM	-36	1	58	131	NA	Not Recommended For New Designs
SPH0655LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-37	1	66	132.5	NA	Preferred
SPH0690LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-35	1	68.5	130	NA	Active
SPK0641HT4H-1	Syntiant	4	3	1	Top	Digital PDM	-26	1	64.5	120	NA	Preferred
SPK0838HT4H-1	Syntiant	4	3	1	Top	Digital PDM	-26	1	64.5	120	NA	Active
SPM0687LR5H-1	Syntiant	4.72	3.76	1.25	Bottom	Analog Differential	-35	1	70	130	600	Not Recommended For New Designs

Filter: Reset

#wtbp-table-72_543234_wrapper table {border-collapse: collapse;} #wtbp-table-72_543234_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-72_543234_wrapper td {font-size: 12px;} #wtbp-table-72_543234 td {text-align: center;} #wtbp-table-72_543234 .thumbnail img, #wtbp-table-72_543234 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-72_543234_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

MEMS MICROPHONES

MEMS (Micro-Electro-Mechanical Systems) microphones are advanced miniature devices essential in mobile, ear, IoT, and automotive applications. As industry leaders, we offer microphones that feature ultra-compact sizes, low profiles, and various mounting options to suit diverse design requirements. Our microphones deliver high-quality audio with increased output capacities and digital solutions that minimize analog noise.

Name	Brand	Diameter / length [mm]	Width [mm]	Thickness [mm]	Port location	Output format	Sensitivity @ 1kHz [dBV re. 1V/Pa] or dBFs	Sensitivity Tolerance [± dB]	SNR [dB]	AOP [dB]	Impedance [Ohm]	Product status

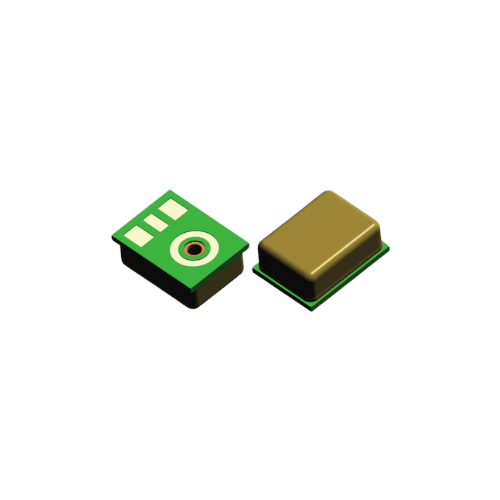

MQM-32325-B118	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-38.5	3	67.5	123	4450	Not Recommended For New Designs
SPH1878LR5H-C	Syntiant	3.50	2.65	1.26	Bottom	Analog Differential	-38	0.5	66.5	134	380	Preferred
SPH2878LR5H-1	Syntiant	3.50	2.65	1.26	Bottom	Analog Differential	-38	1	67	134	380	Preferred

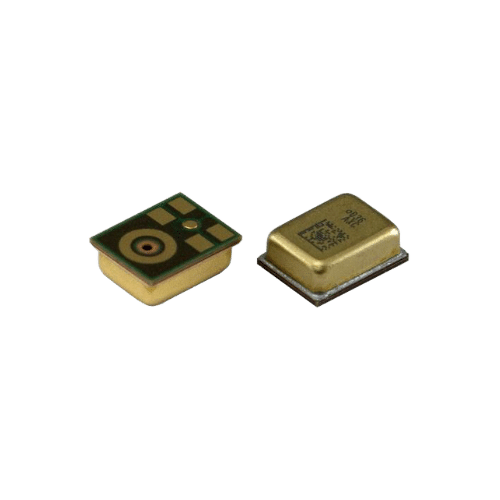

SPH2878LR5H-C	Syntiant	3.50	2.65	1.26	Bottom	Analog Differential	-38	0.5	67	134	380	Preferred
SPH6855LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-35	1	68	116	NA	Preferred
SPH8855LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-26	1	66	121	NA	Preferred

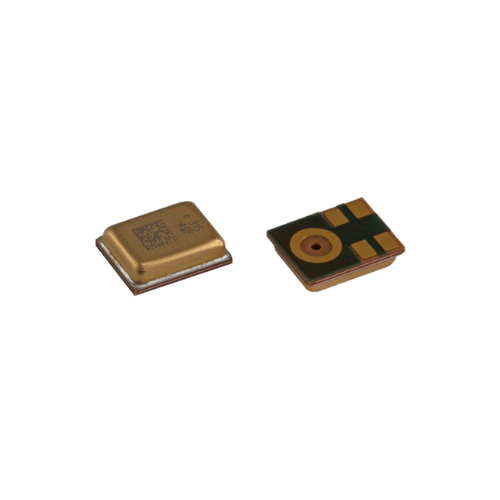

SPH9855LM4H-C	Syntiant	3.50	2.65	0.98	Bottom	Digital	-37	0.5	66	132.5	NA	Preferred
SPH18R1LM4H-1	Syntiant	3.5	2.65	1	Bottom	Digital PDM	-37	1	68	128.5	NA	Preferred

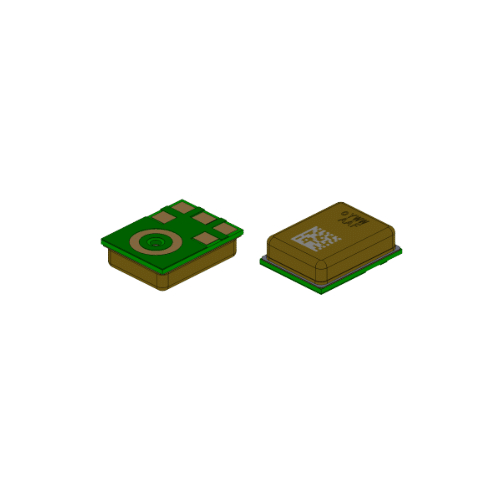

SPH88R1LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-37	1	68	128	NA	Active
SPV08A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-42	1	64.5	134	400	Not Recommended For New Designs

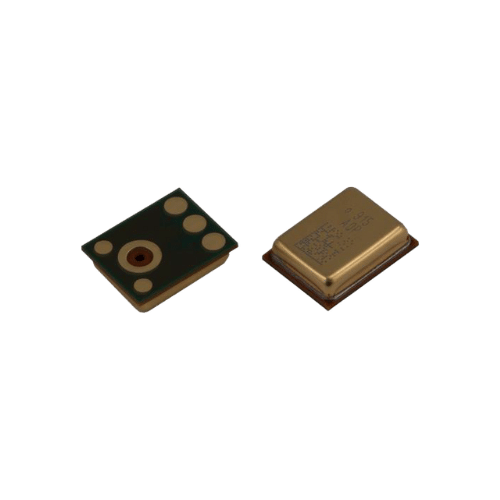

SPM0192LR5H-1	Syntiant	4.72	3.76	1.15	Bottom	Analog Differential	-34.7	1	69.5	130	330	Active
SPV01R9LM4H-1	Syntiant	2.75	1.85	0.8	Bottom	Digital PDM	-37	1	64.6	132	NA	Active

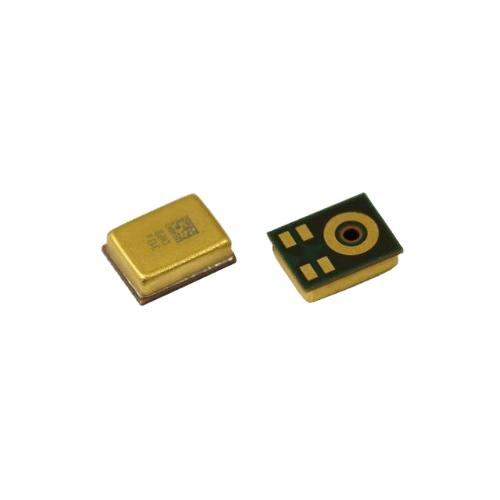

SPK18R1LM4H-1	Syntiant	4	3	1.2	Bottom	Digital PDM	-36	1	70.5	128	NA	Active
SPV01C8LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	65	133	440	Active
SPH8878LR5H-1	Syntiant	3.5	2.65	1.26	Bottom	Analog Differential	-38	1	64.5	131.5	380	Active
SPK0833LM4H-B	Syntiant	4	3	1	Bottom	Digital PDM	-26	3	63	122	NA	Not Recommended For New Designs

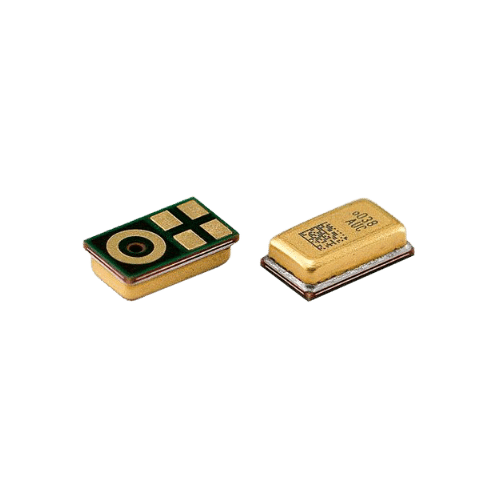

SPC18P8LM4H-1	Syntiant	3.5	2	1	Bottom	Digital PDM	-26	1	65	122	NA	Active
SPK1638LM4H-1	Syntiant	4	3	1	Bottom	Digital PDM	-26	1	64	121	NA	Active

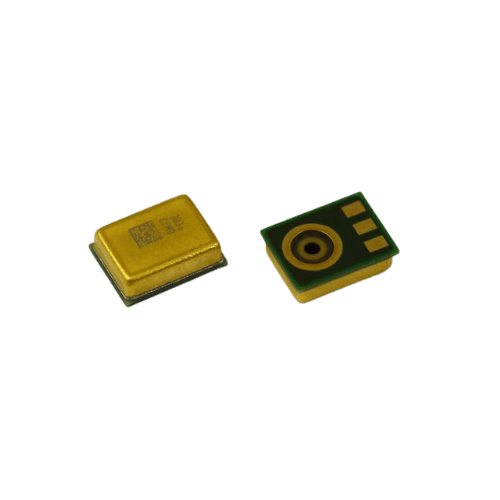

SPK01A0LR5H-1	Syntiant	4	3	1.2	Bottom	Analog Single Ended	-38	1	71.8	130	300	Preferred

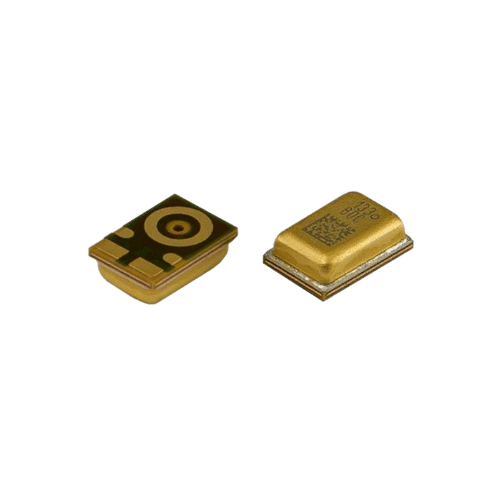

SPV61A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-40	1	66	133	300	Active
SPU01C4HR5H-1	Syntiant	3.76	2.95	1.1	Top	Analog Single Ended	-42	1	62.5	128	300	Active

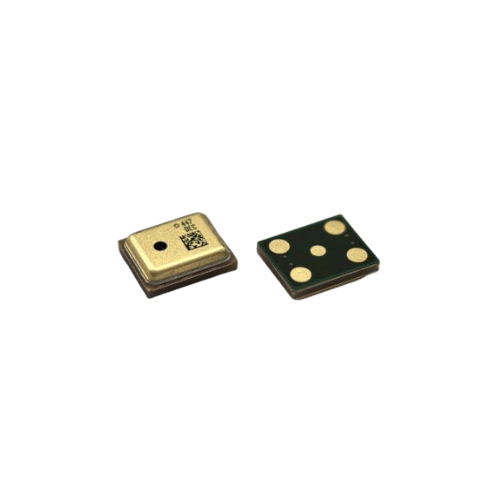

SPU0410HR5H-1	Syntiant	3.76	2.95	1.1	Top	Analog Single Ended	-42	1	59	125	400	Active

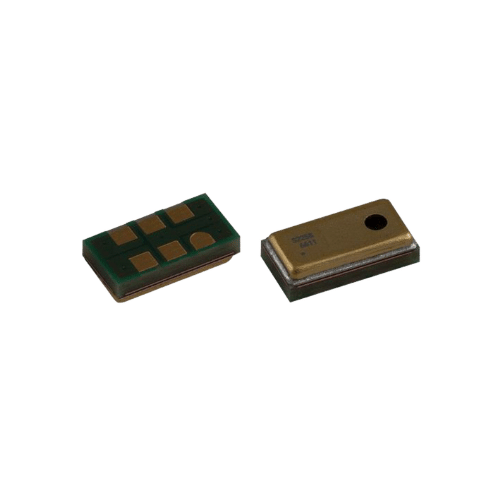

SPG08P4HM4H-1	Syntiant	4	2	1.1	Top	Digital PDM	-26	1	64	120	NA	Active
SPK0838HT4H-B	Syntiant	4	3	1	Top	Digital PDM	-26	3	64	121	NA	Not Recommended For New Designs
SPK1638LM4HB	Syntiant	4	3	1	Bottom	Digital PDM	-26	3	64.5	122	NA	Not Recommended For New Designs
SPH11C3LR5H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	132	120	Active

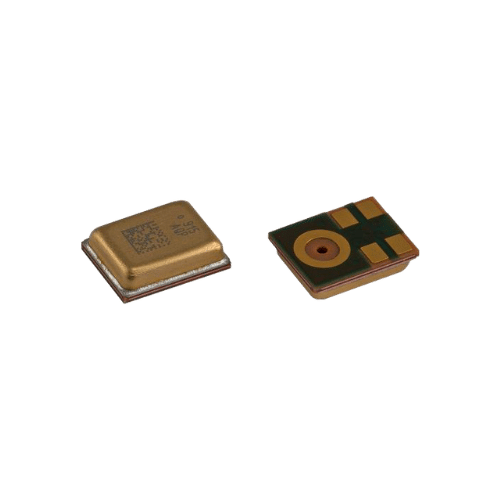

SPH21C3LR5H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	134	120	Active
SPG01R8HT4H-1	Syntiant	4	2	1.1	Top	Digital PDM	-26	1	67.5	120	NA	Active

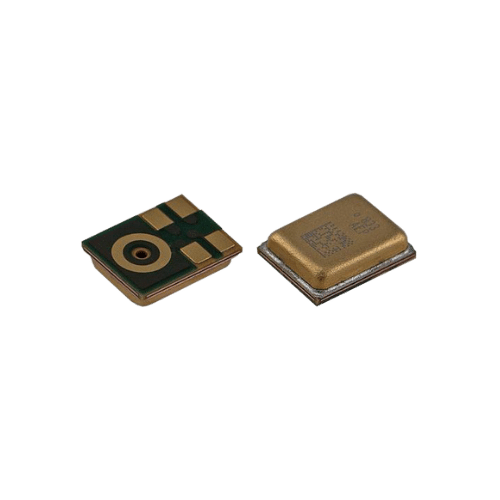

SPH8690LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	68	121	NA	Active
SPK11R1LM4H-1	Syntiant	4	3	1.2	Bottom	Digital PDM	-26	1	71.2	121	NA	Active

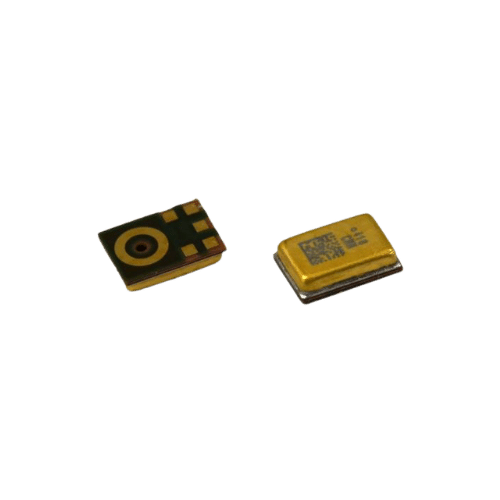

SPS11R1LM4H	Syntiant	3.25	2.25	0.8	Bottom	Digital PDM	-37	1	64.8	132	NA	Active
SPVA1A0LR5H-1	Syntiant	2.75	1.85	1.15	Bottom	Analog Single Ended	-40	1	68	132	400	Active
SPH01R9LM4H-1	Syntiant	3.4	2.65	0.98	Bottom	Digital PDM	-37	1	65.5	132.5	NA	Active
SPH51R3LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	66	121	NA	Active
MM20-33769-000	Knowles	5.204	2.5	1.3	Side firering	Analog Unity Gain	-36	3	67	120	5100	Active
MM20-34978-000	Knowles	4.24	2.5	1.30	Side firering	Analog Unity Gain	-35	3	68	119	5100	Active
MM25-33663-000	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-58	3	69	120.5	3150	Active

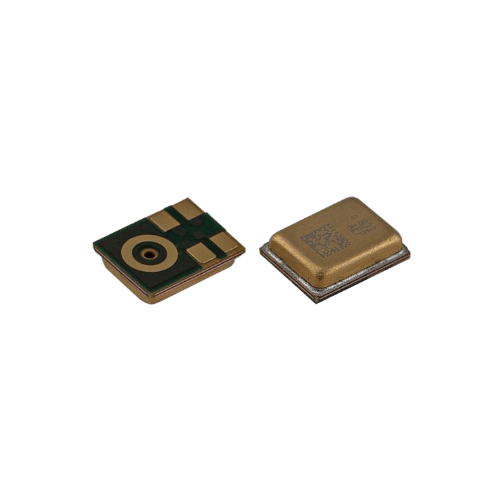

SPH6655LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-26	1	68	121	NA	Preferred

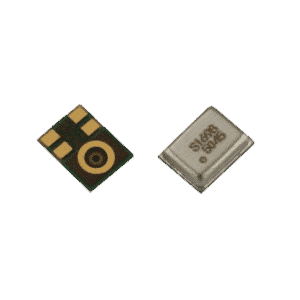

SPH0141LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	62	120	NA	Preferred

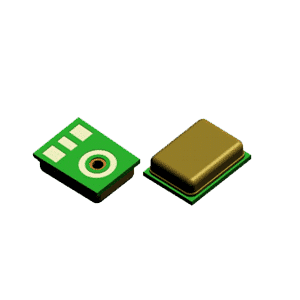

MM20-33639-B116	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-36	3	69	122	5100	Preferred

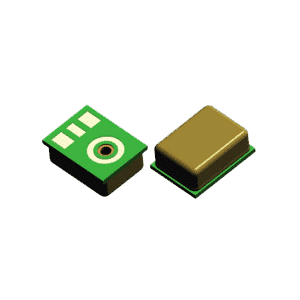

MM20-33366-000	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-35	3	70.5	121	5100	Preferred

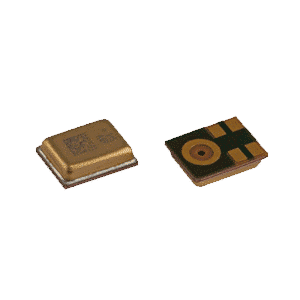

SPH18C3LM4H-1	Syntiant	3.5	2.65	1	Bottom	Analog Differential	-38	1	68.5	132	120	Not Recommended For New Designs
SPH9855LM4H-1	Syntiant	3.50	2.65	0.98	Bottom	Digital	-37	1	66	132.5	NA	Preferred
SPH1878LR5H-1	Syntiant	3.50	2.65	1.26	Bottom	Analog Differential	-38	1	66.5	134	380	Preferred
SPV1142LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	62.5	124	300	Active
SPW0690LM4H-1	Syntiant	3.1	2.5	0.85	Bottom	Digital PDM	-41	1	66.5	135	NA	Preferred
MQM-32325-B66	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-38.5	3	67.5	123	4450	Not Recommended For New Designs
MQM-32325-000	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-38.5	3	67.5	123	4450	Not Recommended For New Designs
MM15-33369-B116	Knowles	3.35	2.5	1.3	Bottom	Analog Unity Gain	-36	3	67	122	5100	Not Recommended For New Designs
MM20-33366-B116	Knowles	3.35	2.5	1.30	Bottom	Analog Unity Gain	-35	3	70.5	121	5100	Preferred
MM20-33639-000	Knowles	3.35	2.5	0.96	Bottom	Analog Unity Gain	-36	3	69	122	5100	Preferred
SPW0878LR5H-1	Syntiant	3.1	2.5	0.96	Bottom	Analog Differential	-38	1	65	134	380	EOL
SPV21A0LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-42	1	64.5	134	400	Preferred
SPV0142LR5H-1	Syntiant	2.75	1.85	0.9	Bottom	Analog Single Ended	-38	1	62.5	124	400	Preferred
SPH0641LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	64	120	NA	Not Recommended For New Designs
SPH0641LU4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-26	1	64.3	120	NA	Preferred
SPH0644HM4H-1	Syntiant	3.5	2.65	0.85	Top	Digital PDM	-36	1	58	131	NA	Not Recommended For New Designs
SPH0655LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-37	1	66	132.5	NA	Preferred
SPH0690LM4H-1	Syntiant	3.5	2.65	0.98	Bottom	Digital PDM	-35	1	68.5	130	NA	Active
SPK0641HT4H-1	Syntiant	4	3	1	Top	Digital PDM	-26	1	64.5	120	NA	Preferred
SPK0838HT4H-1	Syntiant	4	3	1	Top	Digital PDM	-26	1	64.5	120	NA	Active
SPM0687LR5H-1	Syntiant	4.72	3.76	1.25	Bottom	Analog Differential	-35	1	70	130	600	Not Recommended For New Designs
