Our family of Neural Decision Processors (NDPs) are specifically designed to run deep learning models, providing 100x the efficiency and 10/30x the throughput of existing low-power MCUs.

From acoustic event detection for security applications to video processing in teleconferencing, our hardware can equip almost any device with powerful advanced intelligence, enabling real-time data processing and decision making with near-zero latency.

Name	DNN Core Memory	DNN Core Clock	DNN Core Features	MCU Memory	MCU Clock	DSP Memory	DSP Clock	DSP Features	Package [mm]	Product status

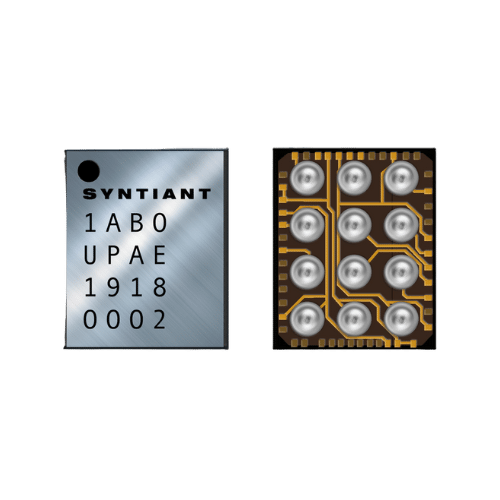

NDP100	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	1,4mm x 1,8mm 12-ball WLBGA	Active

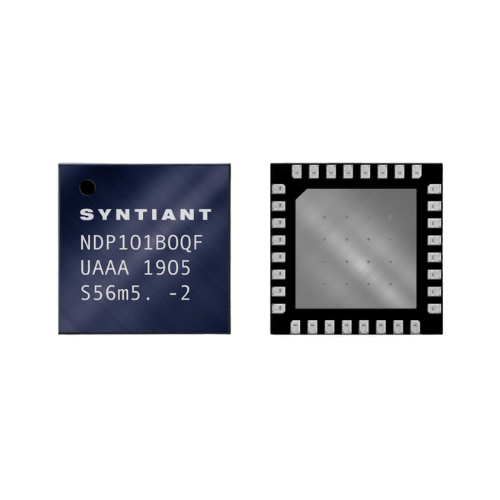

NDP101	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	5mm x 5mm 32-pin QFN	Active

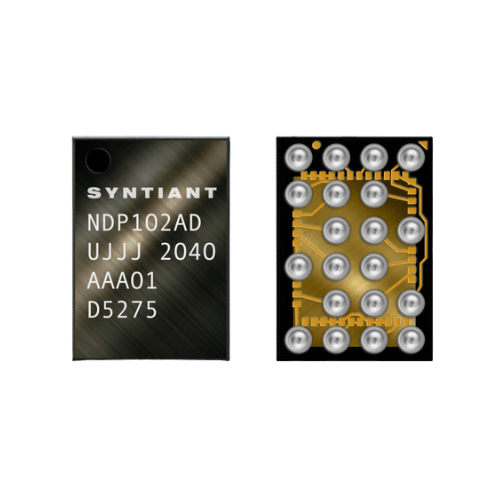

NDP102	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	1,7mm x 2,5mm 20-ball eWLB	Active

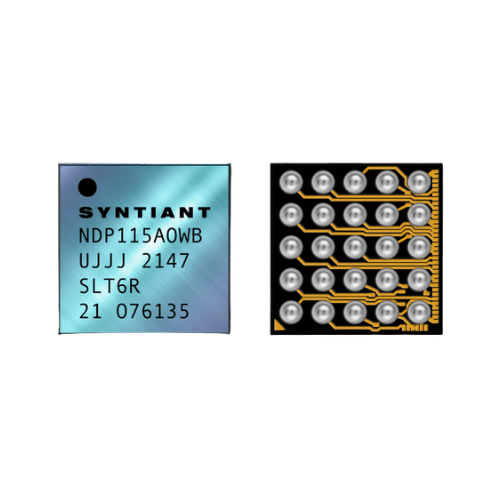

NDP115	pmem: 448kB, dmem: 64kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 64kB, dmem: 144kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	2mm x 2mm 25-ball WLBGA	Active

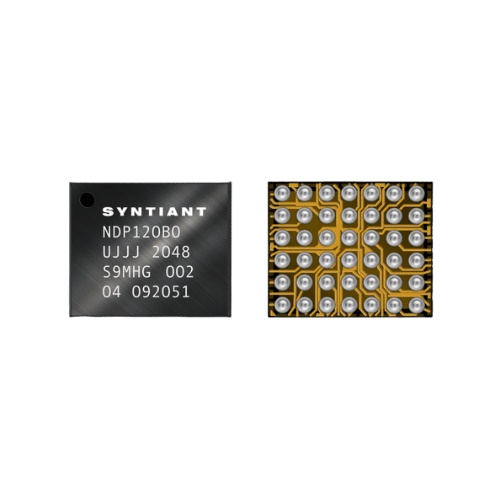

NDP120	pmem: 896kB, dmem: 128kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 96kB, dmem: 192kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	3,1 mm x 2,5 mm 42-ball WLBGA & 5mm x 5mm 40-pin QFN	Active

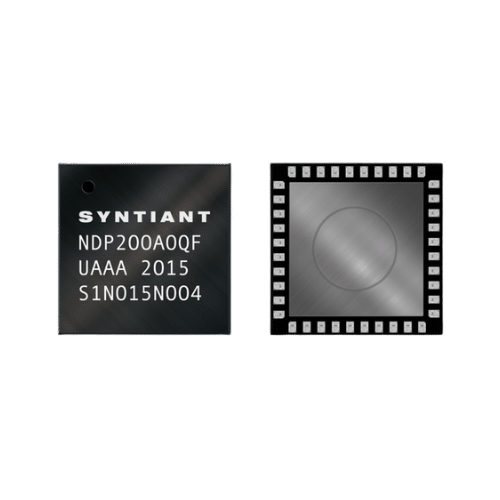

NDP200	pmem: 896kB, dmem: 128kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 96kB, dmem: 192kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	5mm x 5mm 40-pin QFN	Active

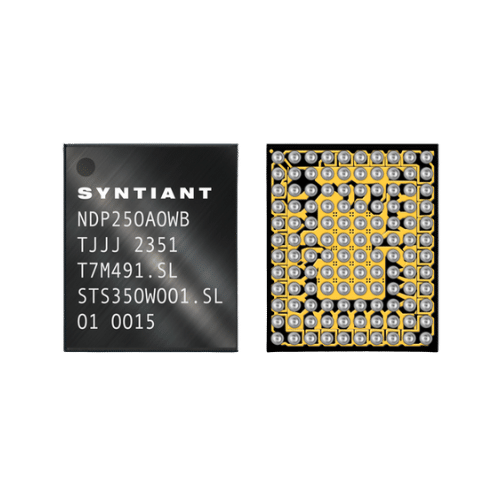

NDP250	6MB	Same as DSP	All Networks, Fixed Point	0.5MB	Same as DSP	1.5MB	0,8V: < 80MHz, 0,9V: < 120MHz	HiFi3: Floating-point	6,1mm x 5,1mm 120-ball eWLB	Sampling

#wtbp-table-91_364011_wrapper table {border-collapse: collapse;} #wtbp-table-91_364011_wrapper th {color: #3b3b3c;font-size: 14px;text-align: center;} #wtbp-table-91_364011_wrapper td {font-size: 12px;} #wtbp-table-91_364011 td {text-align: center;} #wtbp-table-91_364011 .thumbnail img, #wtbp-table-91_364011 .wtbpAddToCartWrapper {margin-left: auto;margin-right: auto;} #wtbp-table-91_364011_wrapper .wtbpFiltersWrapper select {max-width: 90%;} .wtbpModalContent {width: 80%;}

NEURAL DECISION PROCESSORS

Our family of Neural Decision Processors (NDPs) are specifically designed to run deep learning models, providing 100x the efficiency and 10/30x the throughput of existing low-power MCUs.

From acoustic event detection for security applications to video processing in teleconferencing, our hardware can equip almost any device with powerful advanced intelligence, enabling real-time data processing and decision making with near-zero latency.

Name	DNN Core Memory	DNN Core Clock	DNN Core Features	MCU Memory	MCU Clock	DSP Memory	DSP Clock	DSP Features	Package [mm]	Product status
NDP100	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	1,4mm x 1,8mm 12-ball WLBGA	Active
NDP101	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	5mm x 5mm 32-pin QFN	Active
NDP102	params: 589k1	< 16MHz	4 Layer, Fully Connected	M0, 112kB	< 16MHz	-	-	-	1,7mm x 2,5mm 20-ball eWLB	Active
NDP115	pmem: 448kB, dmem: 64kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 64kB, dmem: 144kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	2mm x 2mm 25-ball WLBGA	Active
NDP120	pmem: 896kB, dmem: 128kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 96kB, dmem: 192kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	3,1 mm x 2,5 mm 42-ball WLBGA & 5mm x 5mm 40-pin QFN	Active
NDP200	pmem: 896kB, dmem: 128kB	Same as DSP	All Networks, Fixed Point	M0, 48kB	Same as DSP	imem: 96kB, dmem: 192kB	0,9V: < 22MHz, 1,0V: < 60MHz, 1,1V: < 100MHz	HiFi3: Fixed-point	5mm x 5mm 40-pin QFN	Active
NDP250	6MB	Same as DSP	All Networks, Fixed Point	0.5MB	Same as DSP	1.5MB	0,8V: < 80MHz, 0,9V: < 120MHz	HiFi3: Floating-point	6,1mm x 5,1mm 120-ball eWLB	Sampling
